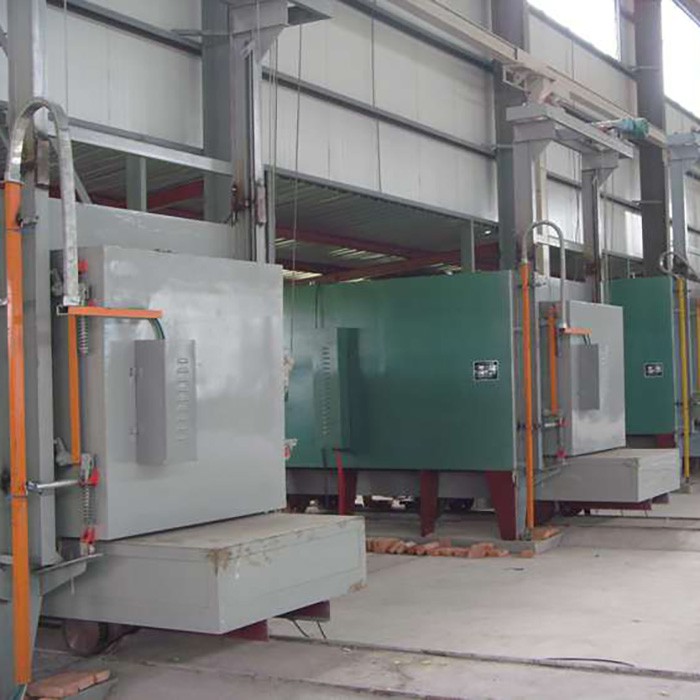

Car-type Resistance Furnace

The trolley type resistance furnace is mainly used for heat treatment such as quenching, annealing, tempering, aging, etc. of large workpieces, high chromium and high manganese steel castings, as well as quenching, normalizing, tempering, annealing, aging, and heat treatment of gray cast iron, ductile iron, rolling mill rolls, steel balls, crusher hammers, wear-resistant linings, and various mechanical parts.

Pošaljite upit

Uvod u proizvod

The large trolley type resistance furnace uses multiple microcomputer program automatic temperature control cabinets to divide the large trolley type resistance furnace into multiple zones with independent heat treatment process curves for high-precision automatic temperature control. Since the heating slope can be set arbitrarily, it is particularly suitable for the special process requirements of ultra-low heating rate of high manganese steel castings to achieve the best heat treatment process effect. With professional heating element design, combined with high-precision temperature control system, multi-stage heat treatment partition technology ensures the furnace temperature uniformity when heat treating large workpieces.

The furnace has less heat storage and heat dissipation loss, fast heating speed, and significant energy saving effect; the trolley and furnace door adopt a new sealing structure to ensure the good airtightness of the furnace.

The resistance belt is evenly distributed throughout the furnace to ensure the uniformity of temperature; the trolley has a simple structure, large transmission torque, stable and reliable operation; the control system has functions such as color display, record printing and fault alarm.

The furnace body has high rigidity and strength to ensure long-term use of the furnace.

The good airtightness of the furnace reduces heat loss.

It has good high-temperature strength and oxidation resistance, stable organization, and can withstand rapid cooling and heating.


			RT3-1020-6	RT3-2100-6	RT3-850-9	RT3-2880-9	RT3-880-12		RT3-1860-12
			1350	2100	850	2880	880		1860
		V	380
			50
			3
Rated Temp.			650		950			1200
Operating Temp.			650		950			1100
	D		4700	10500	6000	13000		6000	16000
	W		4500	4000	3000	3000		3000	2500
	H		2500	3200	2500	3600		2000	2500

		h	4.5	4.5	4	4.5		4	4.5
			±1-2
			±10
Max. load capacity			32000	90000	28000	100000		28000	80000
			26000	39000	25000	45000		25000	35000

Our company can design and manufacture trolley type resistance furnace of various furnace sizes and models for users according to user needs.
